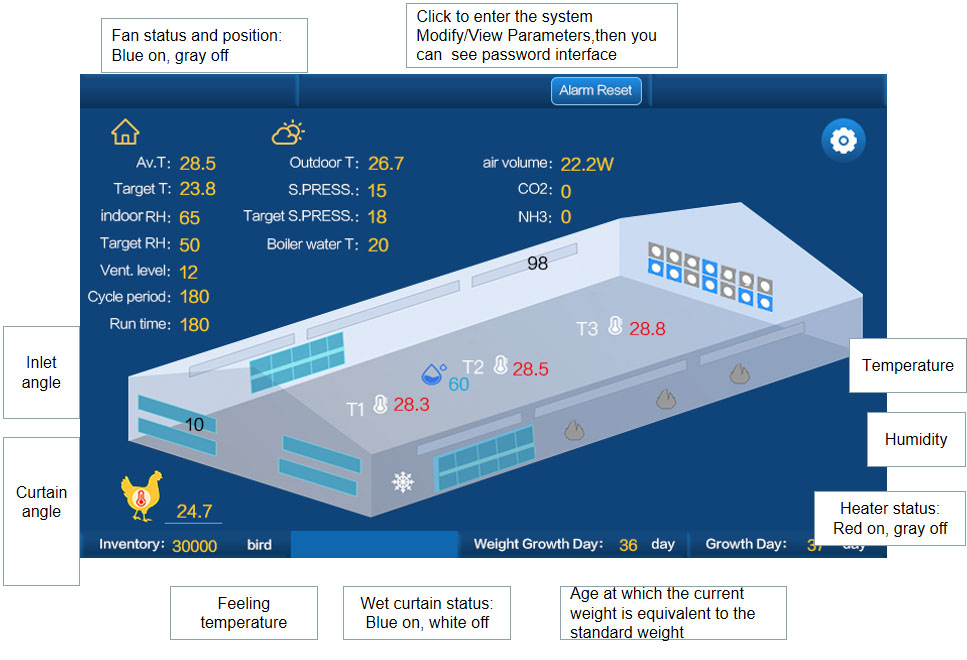

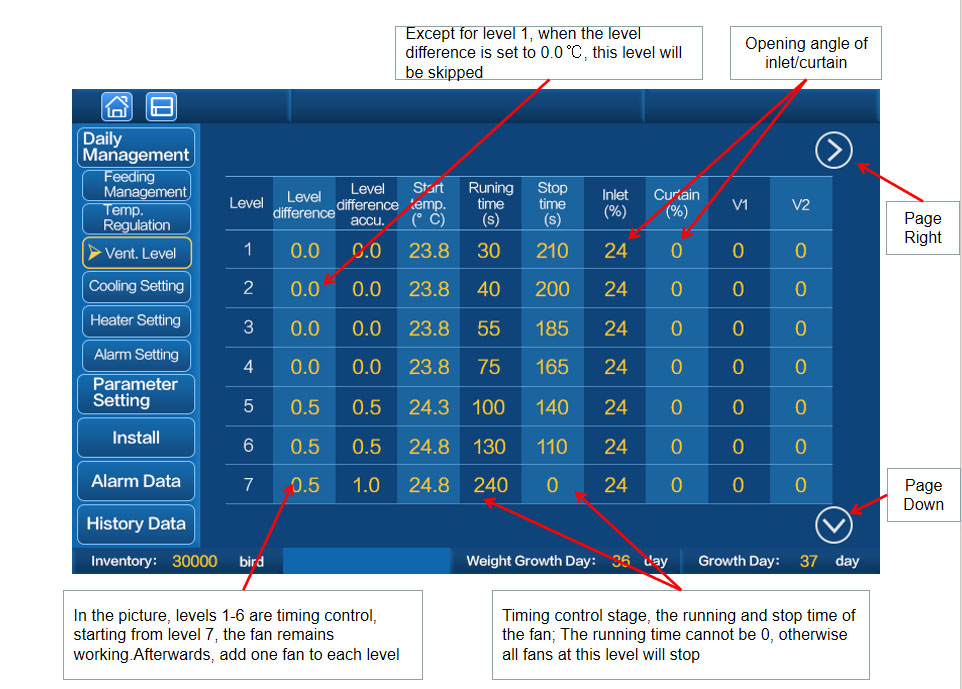

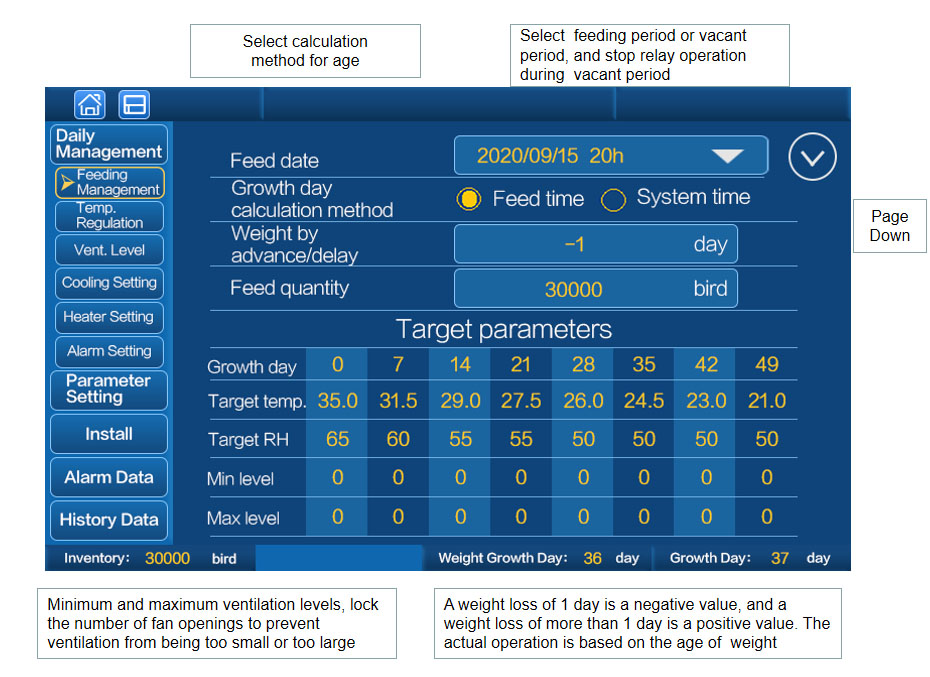

TF12 is a standalone climate controller has 12 relays and support 20 Ventilation level that can control 8 groups of fans, 1 lighting system,1 feed system,4 heaters,1 cooling system and 1 relay to be used for an alarm output. It is possible to control 1 inlet motor and 1 curtain motor. X12 use 7 inch industry panel. It also supports:

1）4 PT1000 Temperature sensors

     (3 indoor, 1 outdoor or water temperature) input

2）1 Humidity sensor input

3）1 NH3 sensor input

4）1 CO2  sensor input

5）1 Static pressure sensor input

6）2 Digital input ( pulse water meter and feeding pulse)

7)  3 Analog output
